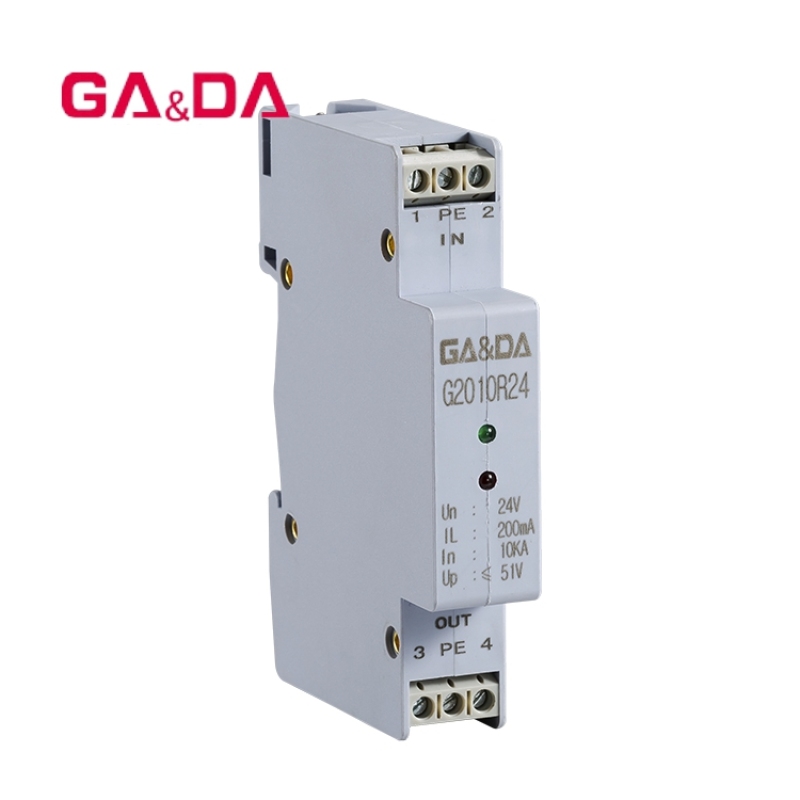

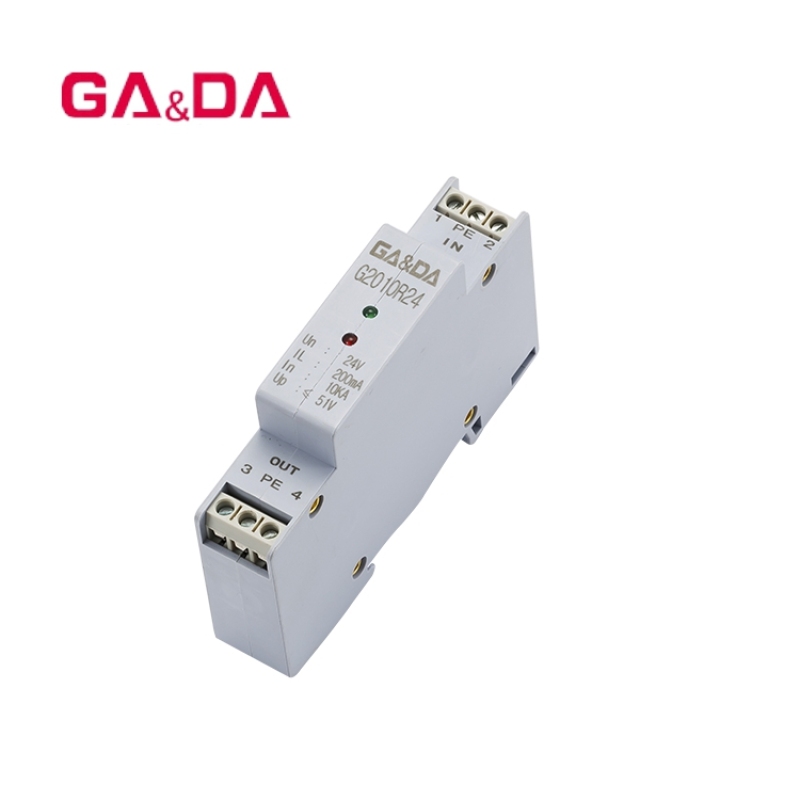

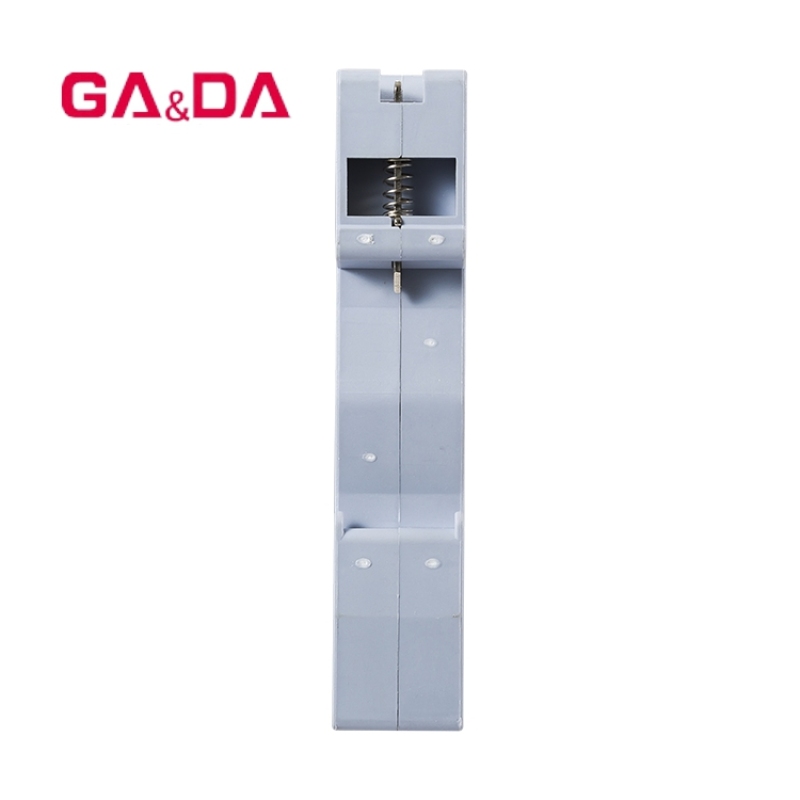

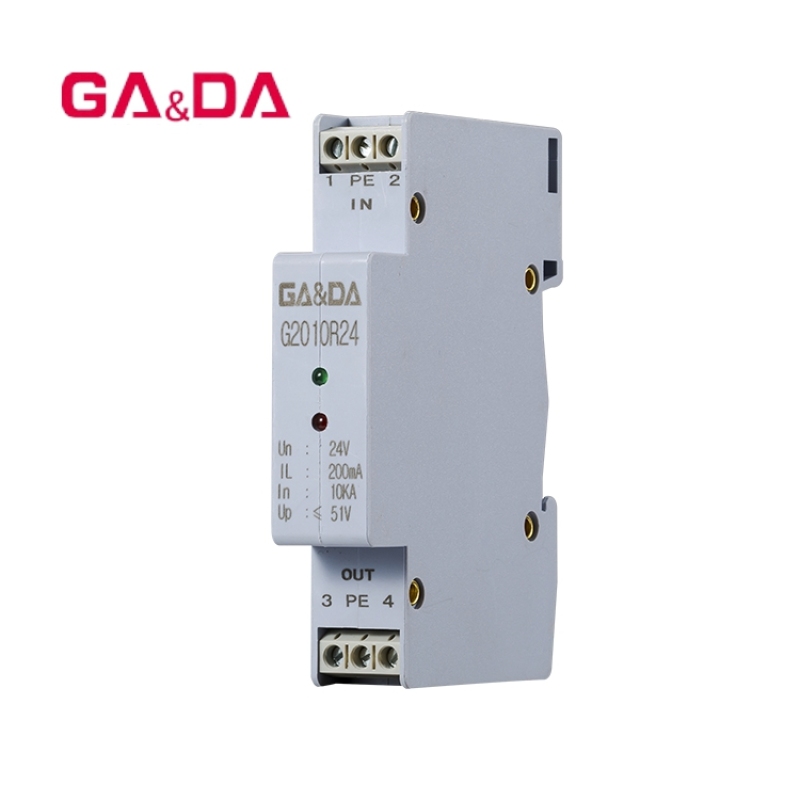

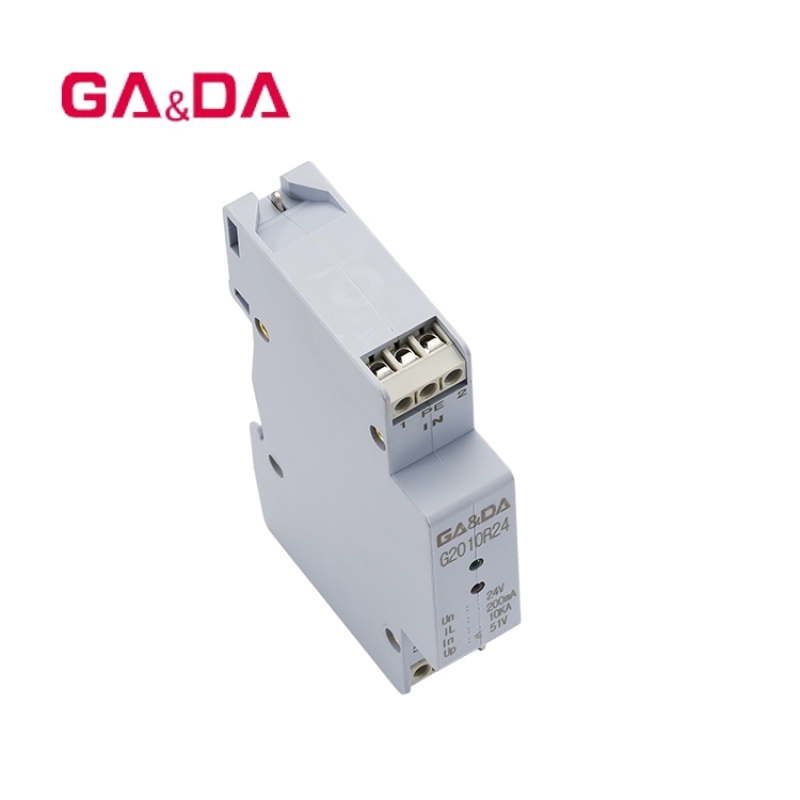

GADA DC AC 24V 24vdc electrical 10KA dual light surge protection RS485 interface signal line lightning surge protective device
5-1004 Piece
$10.50
≥ 1005 Piece
$10.00
- Item No. G2010R24MOQ 5 Piece
Choice
Online customization Customise Now
Customized logo (Min. Order: 5 Piece)
Customized packaging (Min. Order: 5 Piece)
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
| Professional surge protective device factory here now. OEM and ODM One-stop service Customized, happy send sample to you confirm quality |
G2010R24 series industrial control signal line surge protector is designed according to IEC and GB standard. It is suitable for surge protection of communication line / telemetry signal / remote signal and other signal equipment. The product adopts standard connection column interface, which can protect 2~4 lines. The product adopts two-stage series circuit structure, the reaction time is picosecond, and it can fully protect the equipment with the latest semiconductor device. Products adopt modular 35mm rail installation and installation, so that installation and maintenance is very convenient.
Congratulations you found us a professional factory. Contact us directly: Contact Supplier About product details as follow: | |||||||
Product capability parameter | |||||||
Product model | G2010R5 | G2010R6 | G2010R12 | G2010R24 | G2010R48 | G2010R110 | G2010R220 |
Installation location | 1→3 | ||||||
Rated voltage Un | 5V | 6V | 12V | 24V | 48V | 110V | 220V |
Maximum continuous operating voltage Uc | 7V | 9V | 15V | 30V | 51V | 150V | 230V |
Voltage protection level Up3-4 | ≤13V | ≤20V | ≤30V | ≤51V | ≤100V | ≤500V | ≤700V |
Class R rated load electric | 0.2A | ||||||
Class L rated load electric | 1.0A | ||||||
Nominal discharge current 8/20μs | 10KA | ||||||
Nominal maximum discharge current 8/20μs | 20KA | ||||||
Class R line resistance per line | 15Ω | ||||||
Class L line resistance per line | 100μH | ||||||
Cross sectional area of connecting wire | 0.14-2.5mm² | ||||||
Wire stripping length | 6-7mm | ||||||
Color | Light grey | ||||||
Material | Flame retardant reinforced PC | ||||||
Implementation standards | GB18802.2,IEC61643-21 | ||||||
| Almost all the parts of product are produced by our own work, better quality control, competitivly price, timely deliver. We are the factory! we are the source! | |||||||
lt is the product you are looking for, and click to send an inquiry!
Need to be customized, please click send more requirements!
As a factory supplier profit / Assurance for you | our products profit for you |
1. 100% Product quality protection | 1.Best design for you winner market |
2. 100% On-time shipment protection | 2.More than 10 years' manufacture for surge protector |
3. 100% Payment protection | 3 .more than 10+ years for export experience |
4.100% inspection before shipment | 4.All products passed CE,CB,Rohs,Tuv |
5. Most Popular "surge protector" factory | 5.One -stop service expariene more than 10+ years. |
Welcome to contact us for Inquiry & order | |
check below for more information on placing an order |
1. Inquiry-Professional quotation, or send inquiry item more details design,we start contact more details. |
2. Confirm the price, lead time, payment term etc. |
3. Our sales send the Proforma Invoice with our confirmation, or you order online to us directly. |
4. Customer make the payment for deposit and send us Bank receipt. |
5. Initial Production Stage: After got the payment,we will inform customer and arrange the production & inform the estimated time. |
6. Middle Production-send photos to show the production line which you can see your products . Confirm the estimated delivery time again. |
7. Clients make payment for balance and Ship goods , Inform the tracking number and check the status for clients. |
8. Order can be say “finish” when you receive the goods and satisfy with them. |
9. Feedback to our about Quality , Service, Market Feedback & Suggestion. And we can do better. |
START ORDER |
Q1: Selection of surge protector
Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition.Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of GB50057 is 12.5 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly
to suppress the overvoltage.
Q2:Are you a lightning surge protectors factory or lightning surge protectors trading compan?
A2: We are lightning surge protectors manufacturer.
Q3: Warranty and return:
A3:1. lightning surge protectors products and accessories have been tested by 3 times before ship out.
2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q4: How can I get some lightning surge protectors samples?
A4: We are honored to offer you lightning surge protectors samples, pis contact our staff and leave detailed contact information, we promise to keep your information confidential.
Q5: Is sample available and free?
AS: Sample is avaible, but the sample cost should be pay by you.The cost of sample will be refund after further order.PV type Solar spd device surge arrester equipment 2pole pv spd
Q6:Do you accept customized order?
A6:Yes, we do.
Q7: What's the delievery time?
A7:It usually takes 7-15days after confirming payment, but specific time should be based on the order quantity.
| Business Type | Manufacturer, Trading Company | Country / Region | Zhejiang, China |
| Main Products | Power Surge Protector; Signal Surge Protector; PV DC Surge Protector; DC FUSE; AC/DC MCB, Surge Protector Device | Total Employees | 51 - 100 People |
| Total Annual Revenue | Confidential | Year Established | 2014 |
| Certifications | Product Certifications | ||
| Patents | A new type of backup protection switch for surge protector,A smart box type surge protector | Trademarks | |
| Main Markets | Domestic Market 50% Mid East 20% Eastern Europe 10% | ||
In the company, we have first-class laboratories and R&D platform: Lightening Simulation Laboratory of 8/20us150KA compatible with 10/350us50kA, Pressure Sensitive Resistance Tester, Combination Wave Generator of 1.2/50us, Voltage Generator of 1.2/50us, Clearance and Discharge Tube Detector, Remote Signal Detector, Thermal Stability Test System, Lightning Online Monitoring System, Intelligent Lightning Protection Detection System, the Frequency Current Test of SPD Backup Protector, Lightning Current Test System and so on. All of these advanced detection equipments ensure the security and stability of our products.
Integrity, brand, management and innovation has always been our business philosophy. To adapt to the personalized needs of customers for products, we constantly research and develop new technology, material, craft and products. We provide a full range of pre-sale, sale and after-sale service system to our customers with the best technology and the shortest R&D cycle.
