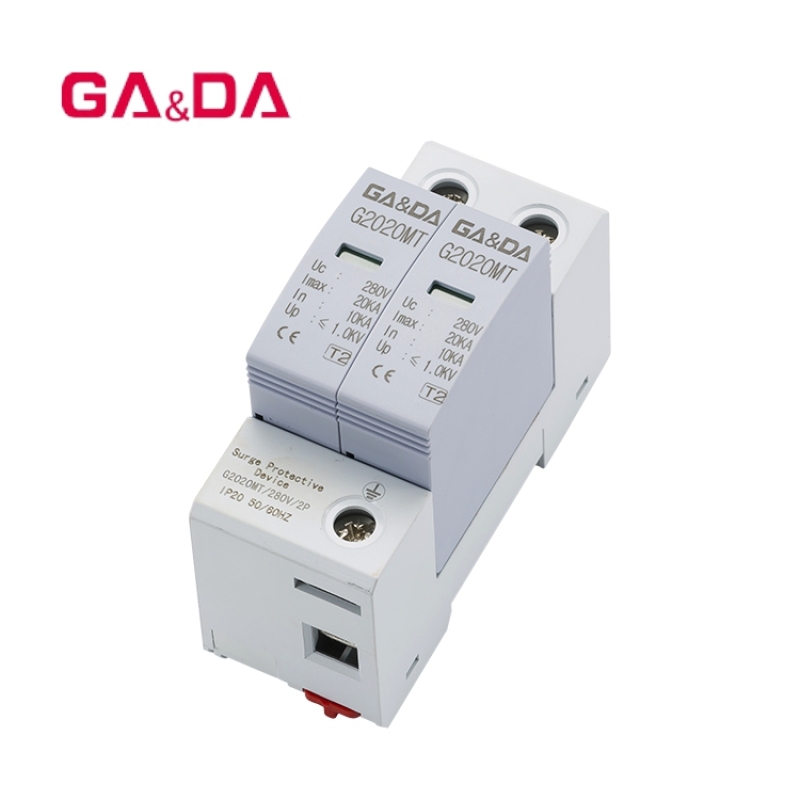

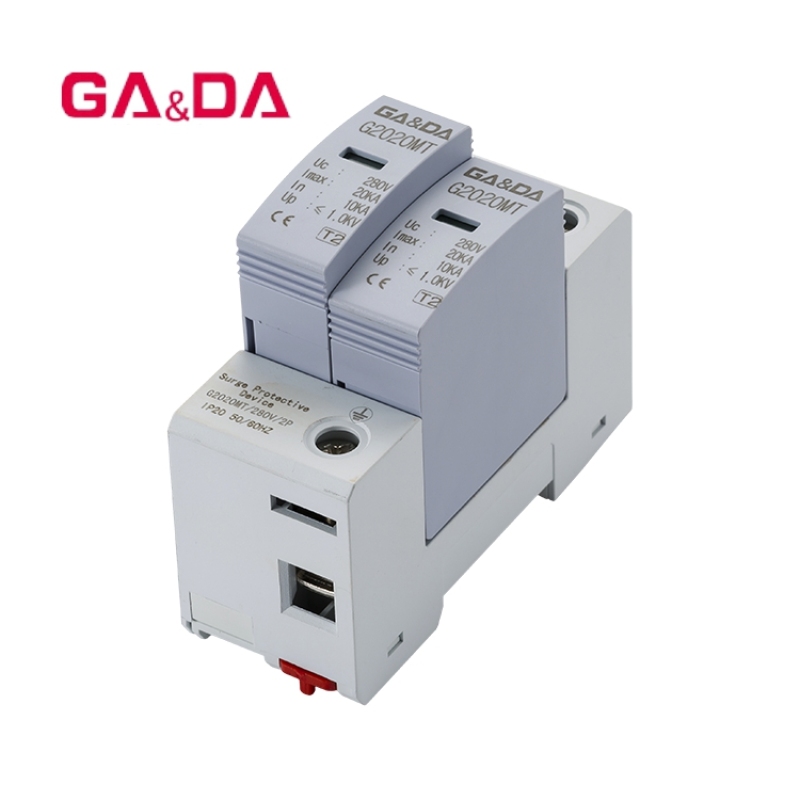

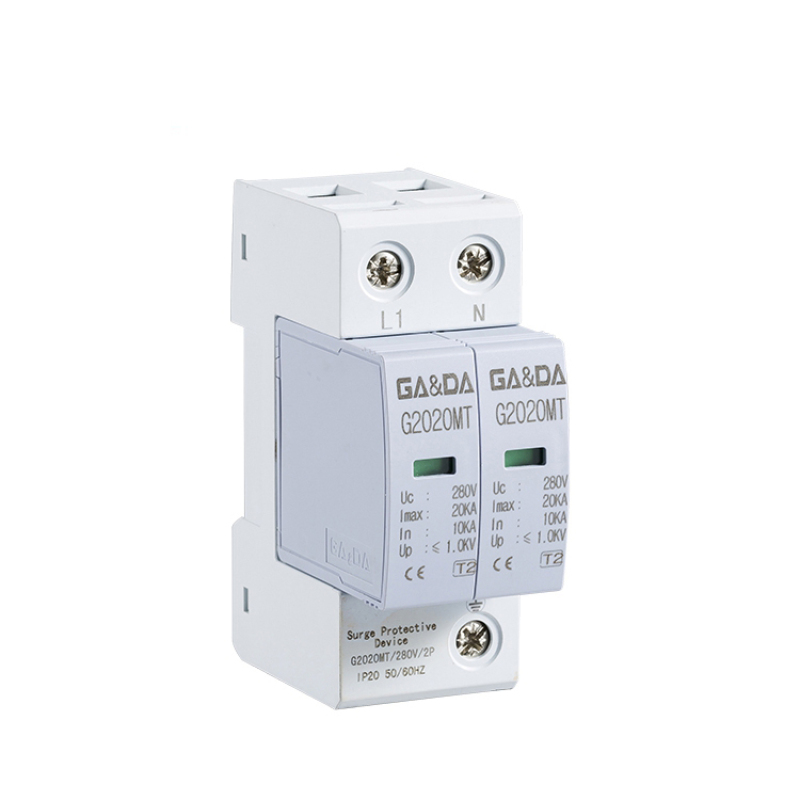

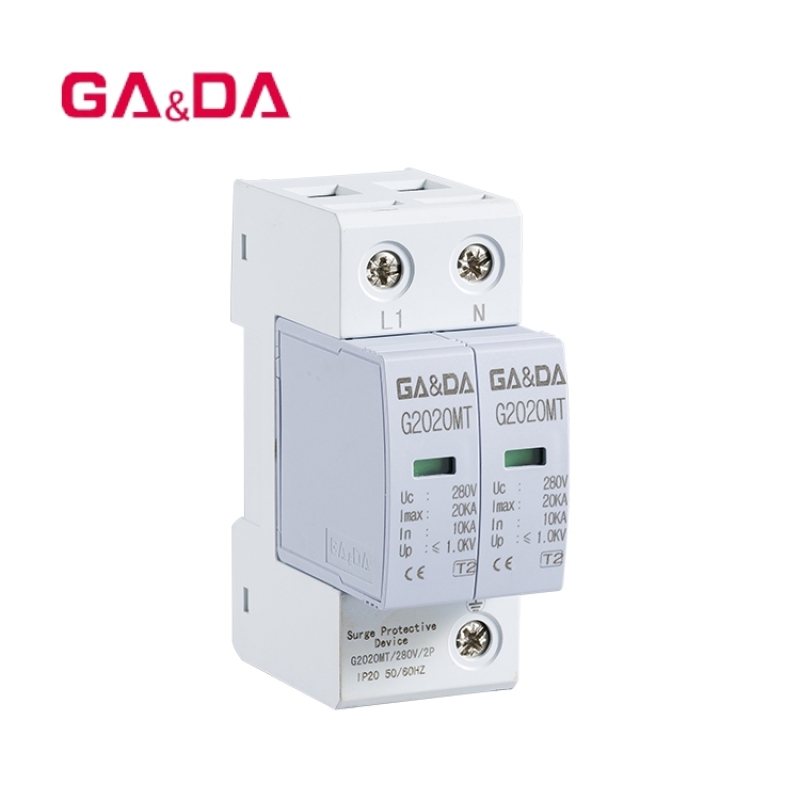

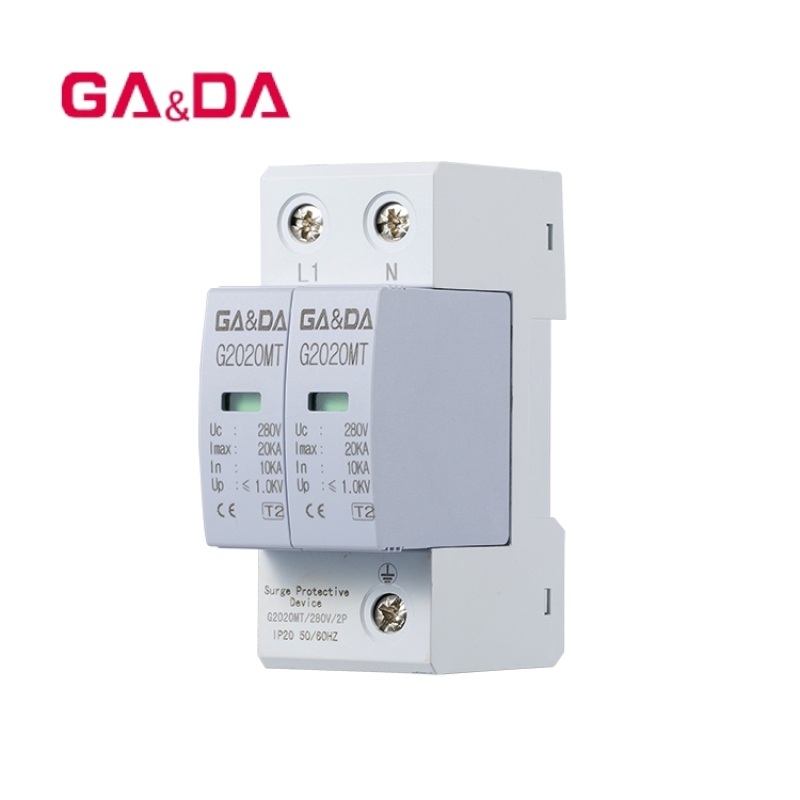

GADA MT series Class I uc 280v 385V power terminal surge protective device Lightning arrester
1-1000 Piece
$6.00
≥ 1001 Piece
$4.50
- Item No. G2020MT-2PMOQ 1 Piece
Choice
Online customization Customise Now
Customized logo (Min. Order: 1 Piece)
Customized packaging (Min. Order: 1 Piece)
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
| Professional surge protective device factory here now. OEM and ODM One-stop service Customized, happy send sample to you confirm quality |
G2020MT series series secondary power surge protectors are designed according to IEC and GB standards. The products with powerful surge release capability, each of the maximum discharge current 20~80kA(8/20μs), applicable to low-voltage distribution system protection at all levels, according to different distribution systems (TT/TN/IT) can choose a variety of combinations.
Congratulations you found us a professional factory. Contact us directly: Contact Supplier About product details as follow: | ||||
Product capability parameter | ||||
Product model | G2020MT | G2040MT | G2060MT | G2080MT |
Pole | 1p,2p,3p,4p | 1p,2p,3p,4p | 1p,2p,3p,4p | 1p,2p,3p,4p |
Rated frequency | One port | One port | One port | One port |
SPD category | Combined type | Combined type | Combined type | Combined type |
Test category | Class Ⅱ test | Class Ⅱ test | Class Ⅱ test | Class Ⅱ test |
Rated voltage Un | 220V AC 50~60Hz | 220V AC 50~60Hz | 220V AC 50~60Hz | 220V AC 50~60Hz |
Maximum continuous operating voltage Uc | 385V AC 50~60Hz | 385V AC 50~60Hz | 385V AC 50~60Hz | 385V AC 50~60Hz |
Nominal discharge current ln(8/20μs) | 10kA | 20kA | 30kA | 40kA |
Maximum discharge current lmax(8/20μs) | 20kA | 40kA | 60kA | 80kA |
Voltage protection level Up(8/20μs) | 1.45kV | 1.6kV | 1.8kV | 2.2kV |
Fuse or circuit breaker / backup protector | 20A/60kA | 25A/60kA | 32A/80kA | 32A/80kA |
Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
Size | 72x90x69 | 72x90x69 | 72x90x69 | 72x90x69 |
Failure indication | Green: Normal Red: Failure | |||
Sectional area of wires | 6~25mm2 | |||
Installation method | 35mm standard rail (EN50022/DIN46277-3) | |||
Working environment temperature | -40~85℃ | |||
Sheathing material | Plastic | |||
Protection level | IP20 | |||
Authentication | CQC CE Type test | |||
Remote alarm | Normally open / normally closed contact terminal (optional) | |||
Remote signaling interface wiring capability | Maximum 1.5mm2 single strand/soft wire | |||
| Almost all the parts of product are produced by our own work, better quality control, competitivly price, timely deliver. We are the factory! we are the source! | ||||
lt is the product you are looking for, and click to send an inquiry!
Need to be customized, please click send more requirements!
Q1: Selection of surge protector
Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition.Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of GB50057 is 12.5 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly
to suppress the overvoltage.
Q2:Are you a lightning surge protectors factory or lightning surge protectors trading compan?
A2: We are lightning surge protectors manufacturer.
Q3: Warranty and return:
A3:1. lightning surge protectors products and accessories have been tested by 3 times before ship out.
2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q4: How can I get some lightning surge protectors samples?
A4: We are honored to offer you lightning surge protectors samples, pis contact our staff and leave detailed contact information, we promise to keep your information confidential.
Q5: Is sample available and free?
AS: Sample is avaible, but the sample cost should be pay by you.The cost of sample will be refund after further order.PV type Solar spd device surge arrester equipment 2pole pv spd
Q6:Do you accept customized order?
A6:Yes, we do.
Q7: What's the delievery time?
A7:It usually takes 7-15days after confirming payment, but specific time should be based on the order quantity.
| Business Type | Manufacturer, Trading Company | Country / Region | Zhejiang, China |
| Main Products | Power Surge Protector; Signal Surge Protector; PV DC Surge Protector; DC FUSE; AC/DC MCB, Surge Protector Device | Total Employees | 51 - 100 People |
| Total Annual Revenue | Confidential | Year Established | 2014 |
| Certifications | Product Certifications | ||
| Patents | A new type of backup protection switch for surge protector,A smart box type surge protector | Trademarks | |
| Main Markets | Domestic Market 50% Mid East 20% Eastern Europe 10% | ||
In the company, we have first-class laboratories and R&D platform: Lightening Simulation Laboratory of 8/20us150KA compatible with 10/350us50kA, Pressure Sensitive Resistance Tester, Combination Wave Generator of 1.2/50us, Voltage Generator of 1.2/50us, Clearance and Discharge Tube Detector, Remote Signal Detector, Thermal Stability Test System, Lightning Online Monitoring System, Intelligent Lightning Protection Detection System, the Frequency Current Test of SPD Backup Protector, Lightning Current Test System and so on. All of these advanced detection equipments ensure the security and stability of our products.
Integrity, brand, management and innovation has always been our business philosophy. To adapt to the personalized needs of customers for products, we constantly research and develop new technology, material, craft and products. We provide a full range of pre-sale, sale and after-sale service system to our customers with the best technology and the shortest R&D cycle.
