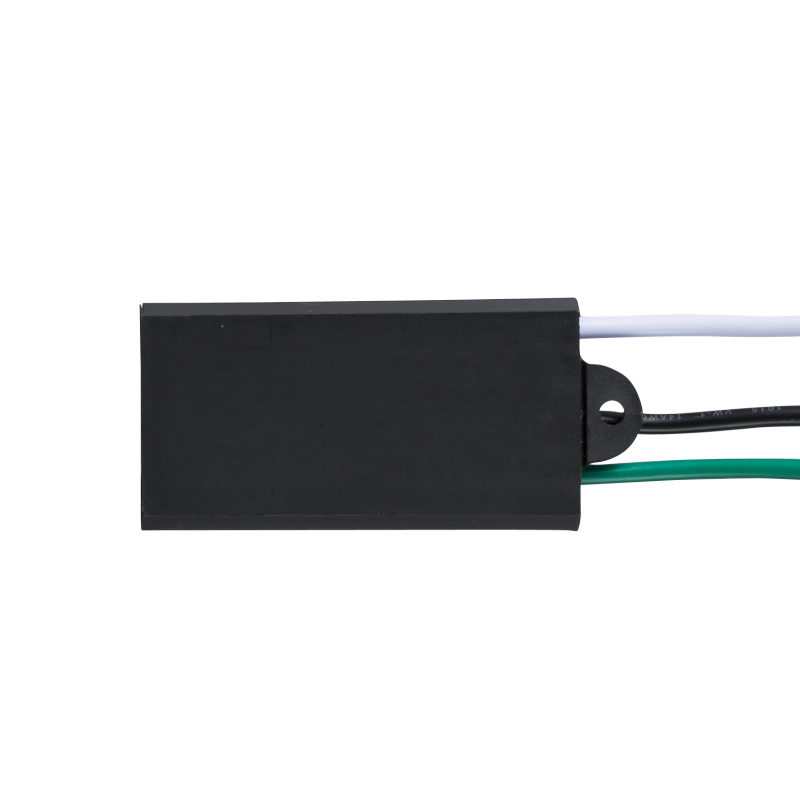

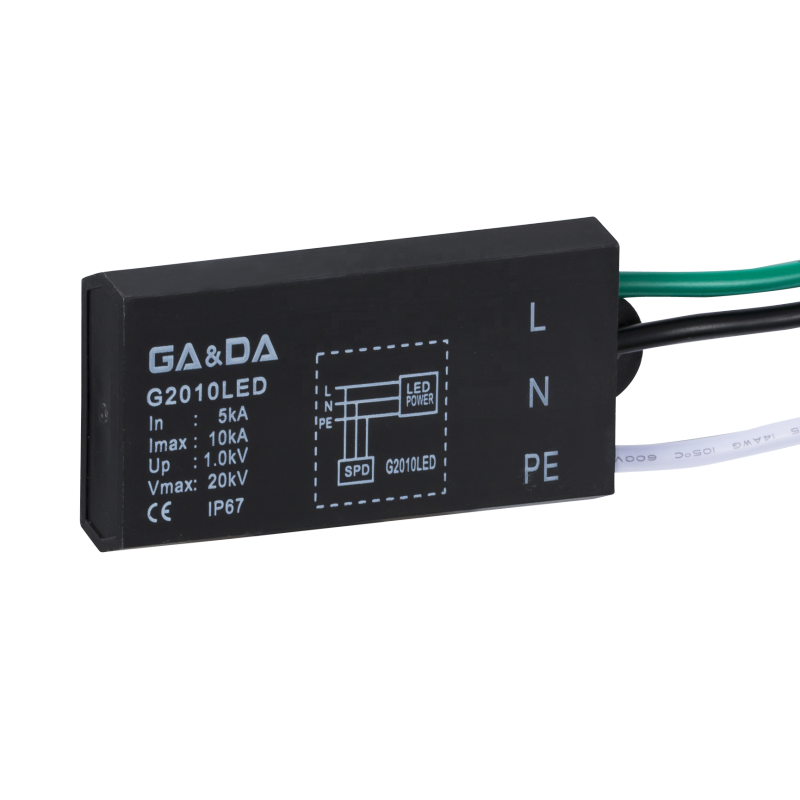

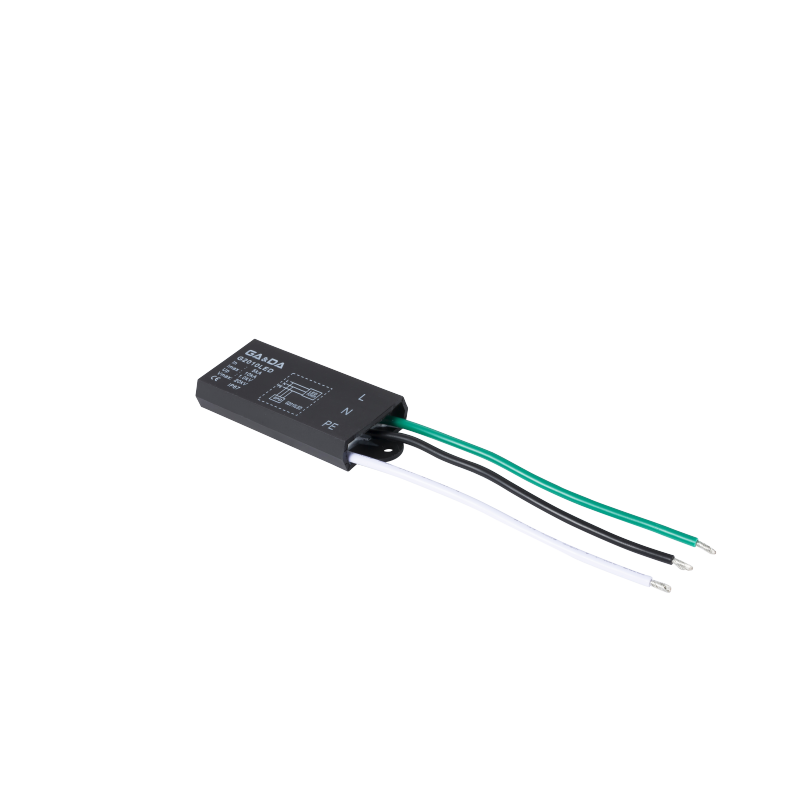

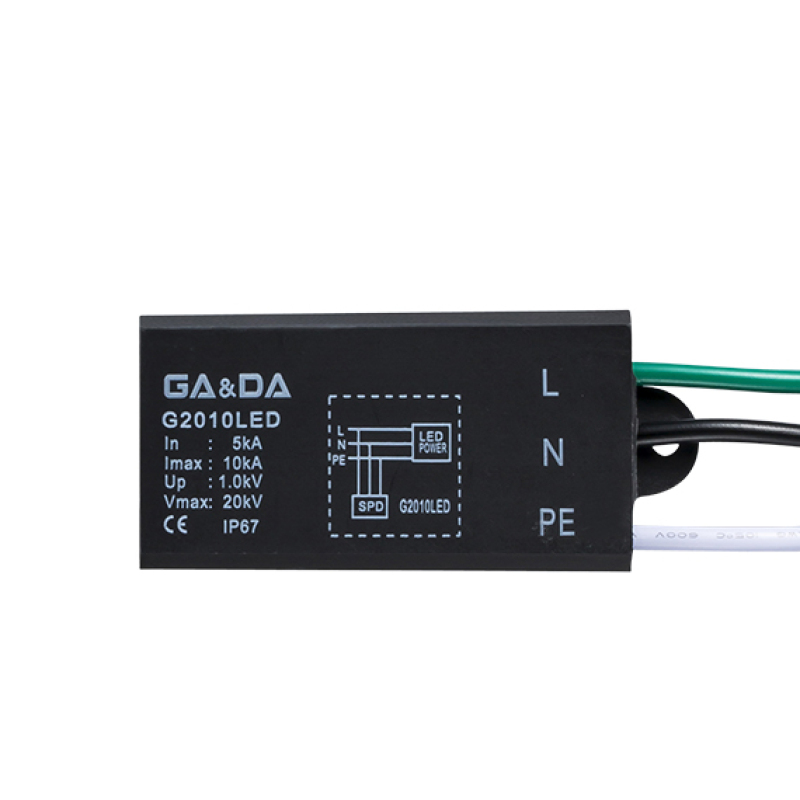

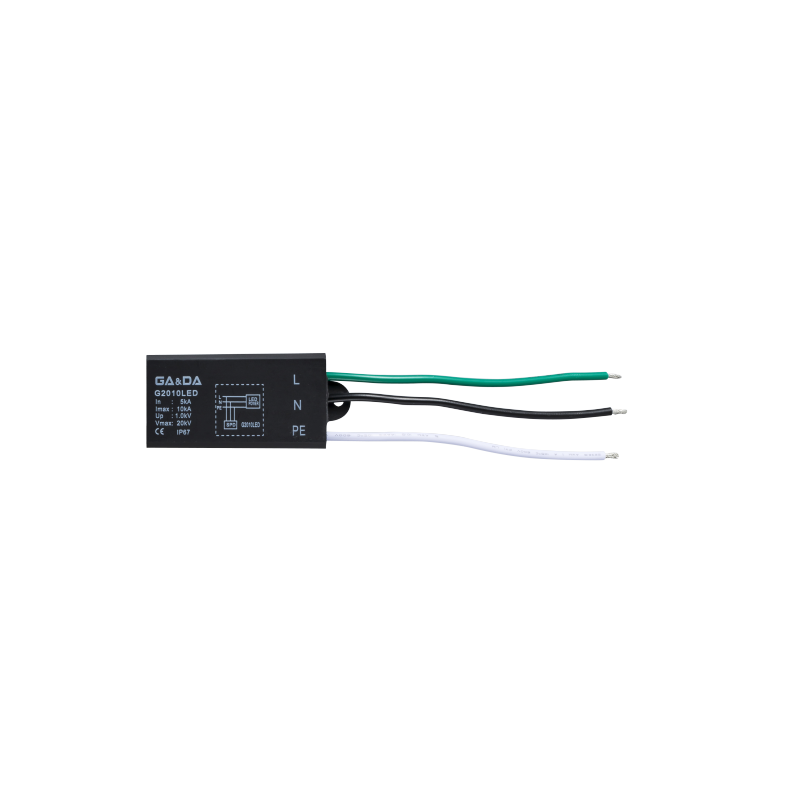

10kA 10kV Surge Protection Device LED Street Light SPD with CE Certifications
1-1000 Piece
$5.50
≥ 1001 Piece
$4.50
- Item No. G2010LEDMOQ 1 Piece
Choice
Online customization Customise Now
Customized logo (Min. Order: 1 Piece)
Customized packaging (Min. Order: 1 Piece)
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
230V LED light black power surge protector spd 10ka
LED lighting systems with energy saving, environmental protection and longer service life are now widely used. However, even the best technology will have a short board, for LED, that is, lightning surge and over-voltage operation is extremely sensitive to the surge.Due to exposure to outdoor environment, LED lighting system is facing the failure of power module caused by surge impact, damage of LED components and reduction of lighting efficiency. Therefore, we strongly recommend the use of stand-alone surge protectors to protect the LED outdoor lighting system.
GanDian Lightning Protection Company can provide a full range of LED outdoor lighting system special surge protector. The products can be installed in the LED lamp shade and control cabinet.LED outdoor lighting industry of GanDian Lightning Protection Company's solutions can be applied to LED street lights, tunnel lights, outdoor lighting and many other outdoor lighting systems.
Product capability parameter | ||||
Product model | G2010LED | G2010LED | G2010LED | G2010LED |
Circuit types/Supply voltage | Single phase 120V,230V | Single phase 120V,230V | Single phase 230V | Single phase 230~277V |
Insulation type | Class 1,Class 2 | Class 1 | Class 1 | Class 1 |
Nominal discharge current In | 5kA | 5kA | 3kA | 5kA |
Maximum discharge current Imax | 10kA | 10kA | 3kA | 10kA |
Connection mode | terminal/ wire | terminal/ wire | terminal/ wire | terminal/ spring pressure |
Installation method | Plate | Plate | Terminal | Plate |
Outline size | 70.70x32.50x12.80mm | 70.70x32.50x12.80mm | 70.70x32.50x12.80mm | 70.70x32.50x12.80mm |
Failure mode | -power failure | -power failure | -buzzer sound | -indicator light up |
Remote signal alarm | Optional | No | No | No |
Data line protection | Yes | No | No | No |
Q1: Selection of surge protector
Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition.Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of GB50057 is 12.5 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.
Q2:Are you a lightning surge protectors factory or lightning surge protectors trading company?
A2: We are lightning surge protectors manufacturer.
Q3: Warranty and return:
A3:1. lightning surge protectors products and accessories have been tested by 3 times before ship out.230V 10KA LED light SPD White power surge protector
2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q4: How can I get some lightning surge protectors samples?
A4: We are honored to offer you lightning surge protectors samples, pis contact our staff and leave detailed contact information, we promise to keep your information confidential.
Q5: Is sample available and free?
AS: Sample is avaible, but the sample cost should be pay by you.The cost of sample will be refund after further order.
Q6:Do you accept customized order?
A6:Yes, we do.
Q7: What's the delievery time?
A7:It usually takes 7-15days after confirming payment, but specific time should be based on the order quantity.230V 10KA LED light SPD White power surge protector
| Business Type | Manufacturer, Trading Company | Country / Region | Zhejiang, China |
| Main Products | Power Surge Protector; Signal Surge Protector; PV DC Surge Protector; DC FUSE; AC/DC MCB, Surge Protector Device | Total Employees | 51 - 100 People |
| Total Annual Revenue | Confidential | Year Established | 2014 |
| Certifications | Product Certifications | ||
| Patents | A new type of backup protection switch for surge protector,A smart box type surge protector | Trademarks | |
| Main Markets | Domestic Market 50% Mid East 20% Eastern Europe 10% | ||
In the company, we have first-class laboratories and R&D platform: Lightening Simulation Laboratory of 8/20us150KA compatible with 10/350us50kA, Pressure Sensitive Resistance Tester, Combination Wave Generator of 1.2/50us, Voltage Generator of 1.2/50us, Clearance and Discharge Tube Detector, Remote Signal Detector, Thermal Stability Test System, Lightning Online Monitoring System, Intelligent Lightning Protection Detection System, the Frequency Current Test of SPD Backup Protector, Lightning Current Test System and so on. All of these advanced detection equipments ensure the security and stability of our products.
Integrity, brand, management and innovation has always been our business philosophy. To adapt to the personalized needs of customers for products, we constantly research and develop new technology, material, craft and products. We provide a full range of pre-sale, sale and after-sale service system to our customers with the best technology and the shortest R&D cycle.
