New 2020 innovative product Network camera series AC220V/AC24V/AC12V SPD suppliers
1-1000 Piece
$10.00
≥ 1001 Piece
$9.00
- Item No. G20DX-ZMOQ 1 Piece
Choice
Online customization Customise Now
Customized logo (Min. Order: 1 Piece)
Customized packaging (Min. Order: 1 Piece)
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
New 2020 innovative product Network camera series AC220V/AC24V/AC12V SPD suppliers

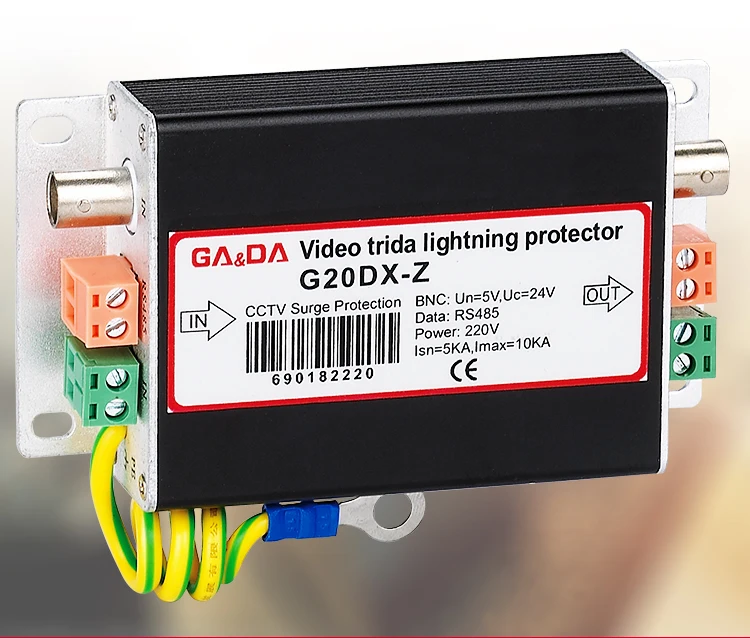

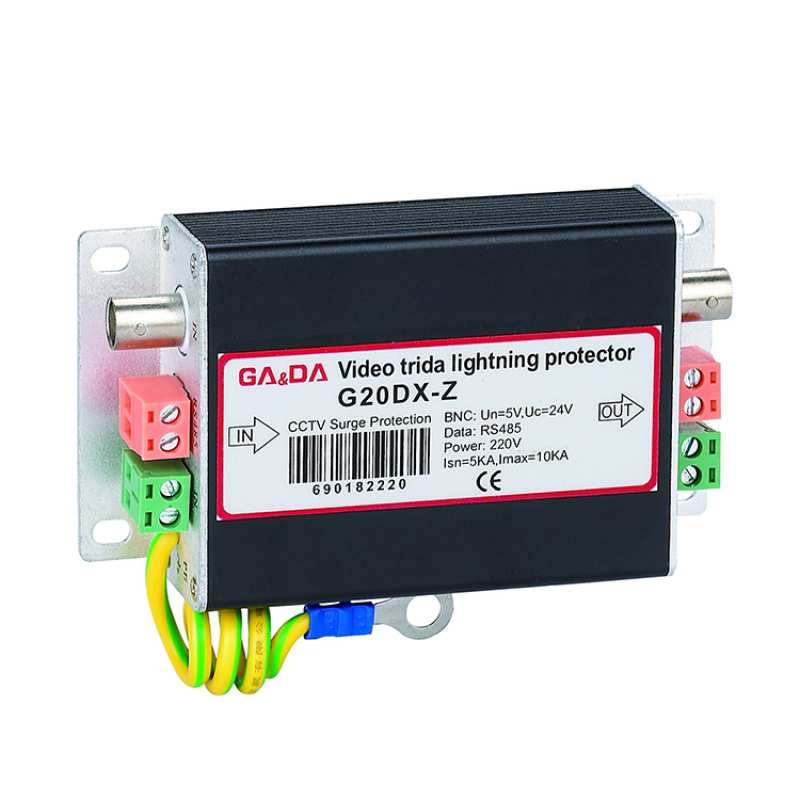

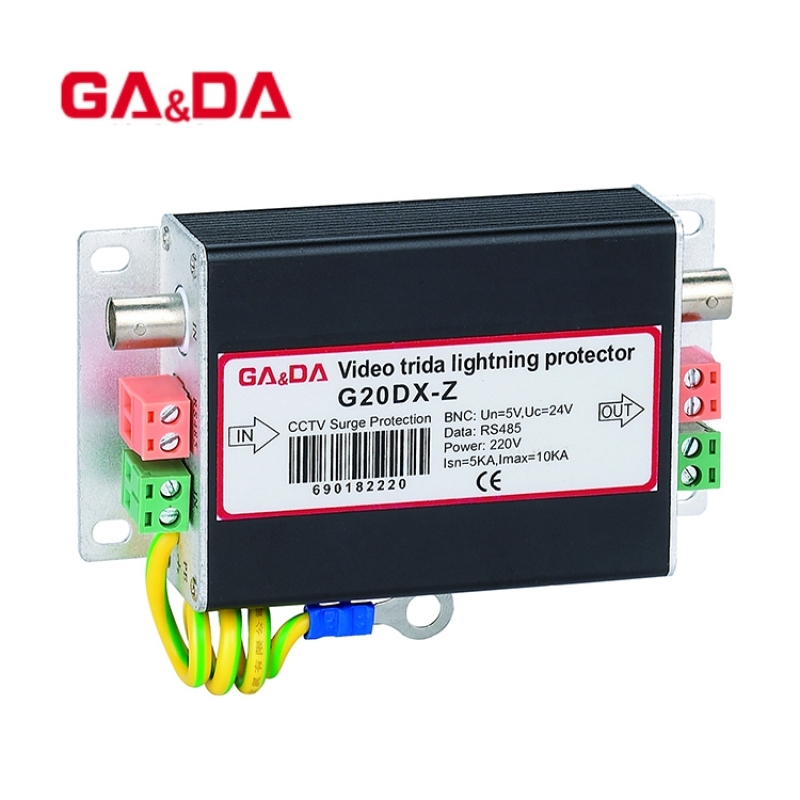

G20DX-Z series AC / DC power supply monitoring camera, surge protector for integration and multi-function surge protector (three in one lightning protection device). The power supply of the camera, video/audio and cloud control line can be protected respectively. The maximum discharge current can reach 10KA. The limiting voltage can be reduced to 15V and the reaction speed is nanosecond, which can fully protect the monitoring equipment with the latest technology.
Product capability parameter | ||
Product model | G20DX-Z | |
Function | Integrated surge protector | |
Power protection parameter | ||
Maximum continuous operating voltage | 320V | 40V |
Load current | 10A | 5A |
Limiting voltage | 900V | 75V |
Nominal discharge current | 5kA | 5kA |
Maximum discharge current | 10kA | 10kA |
Video protection parameter | ||
Maximum continuous operating voltage | 8V | |
Limiting voltage | 15V | |
Nominal discharge current | 5kA | |
Maximum discharge current | 10kA | |
Maximum transmission rate | 10MHz (insertion loss <0.2dB) | |
Cloud control signal protection parameters (only three in one) | ||
Maximum continuous operating voltage | 8V | |
Limiting voltage | 15V | |
Nominal discharge current | 5kA | |
| Model | G20DX-Z |
| Color | black and white |
| Certification | CE,CQCBNC RS485 interface BNC 3 in 1 signal surge protector |
| purpose | Camera power, video/audio, etc |
| function | The power supply of the camera, video/audio and cloud control line can be protected respectively. |
| Characteristic | 1:Multifunctional surge overvoltage protection; 2:Large capacity 1000A |
| selling point | 1:High-speed reaction; 2:High-speed reaction; 3: Low loss |
| advantage | 1:Over 10 years experience in production and processing; 2:faster product innovation, production specialization, timely delivery, 3:Strict quality inspection procedure |
Q1: Selection of surge protector
Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition.Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of GB50057 is 12.5 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.
Q2:Are you a lightning surge protectors factory or lightning surge protectors trading compan?
A2: We are lightning surge protectors manufacturer.
Q3: Warranty and return:BNC RS485 interface BNC 3 in 1 signal surge protector
A3:1. lightning surge protectors products and accessories have been tested by 3 times before ship out.
2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q4: How can I get some lightning surge protectors samples?
A4: We are honored to offer you lightning surge protectors samples, pis contact our staff and leave detailed contact information, we promise to keep your information confidential.
Q5: Is sample available and free?
AS: Sample is avaible, but the sample cost should be pay by you.The cost of sample will be refund after further order.
Q6:Do you accept customized order?
A6:Yes, we do.
Q7: What's the delievery time?
A7:It usually takes 7-15days after confirming payment, but specific time should be based on the order quantity.
| Business Type | Manufacturer, Trading Company | Country / Region | Zhejiang, China |
| Main Products | Power Surge Protector; Signal Surge Protector; PV DC Surge Protector; DC FUSE; AC/DC MCB, Surge Protector Device | Total Employees | 51 - 100 People |
| Total Annual Revenue | Confidential | Year Established | 2014 |
| Certifications | Product Certifications | ||
| Patents | A new type of backup protection switch for surge protector,A smart box type surge protector | Trademarks | |
| Main Markets | Domestic Market 50% Mid East 20% Eastern Europe 10% | ||
In the company, we have first-class laboratories and R&D platform: Lightening Simulation Laboratory of 8/20us150KA compatible with 10/350us50kA, Pressure Sensitive Resistance Tester, Combination Wave Generator of 1.2/50us, Voltage Generator of 1.2/50us, Clearance and Discharge Tube Detector, Remote Signal Detector, Thermal Stability Test System, Lightning Online Monitoring System, Intelligent Lightning Protection Detection System, the Frequency Current Test of SPD Backup Protector, Lightning Current Test System and so on. All of these advanced detection equipments ensure the security and stability of our products.
Integrity, brand, management and innovation has always been our business philosophy. To adapt to the personalized needs of customers for products, we constantly research and develop new technology, material, craft and products. We provide a full range of pre-sale, sale and after-sale service system to our customers with the best technology and the shortest R&D cycle.
