GADA 280V 40KA pv solar power surge protector device
1-5 Piece
$7.90
6 -9 Piece
$7.80
≥ 10 Piece
$7.70
- Item No. G20-40PV-500V-2PMOQ 1 Piece
Choice
Online customization Customise Now
Customized logo (Min. Order: 1 Piece)
Customized packaging (Min. Order: 1 Piece)
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production

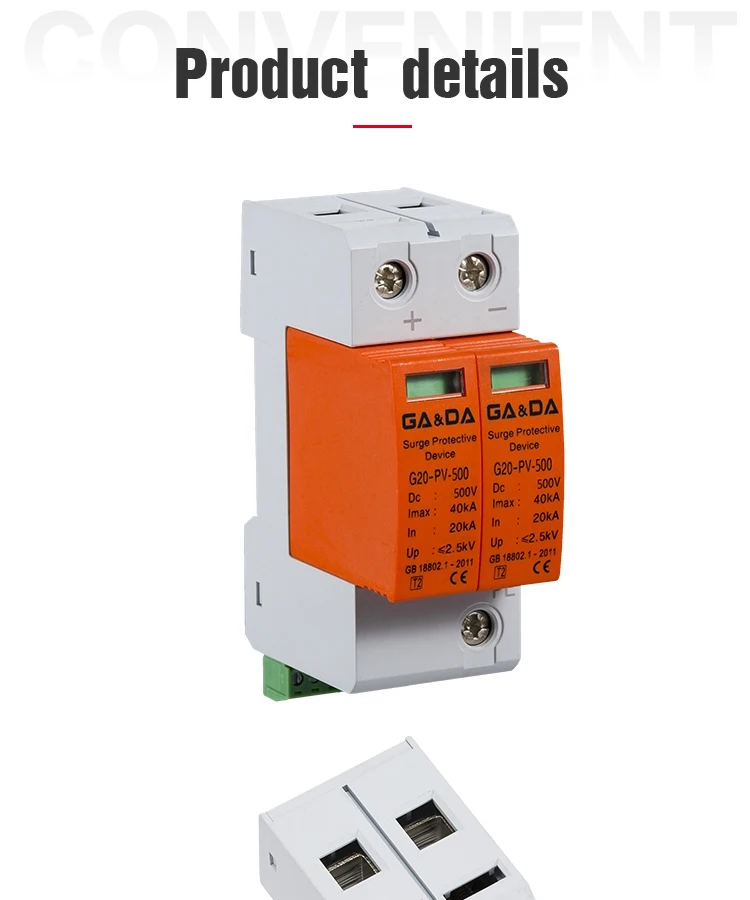

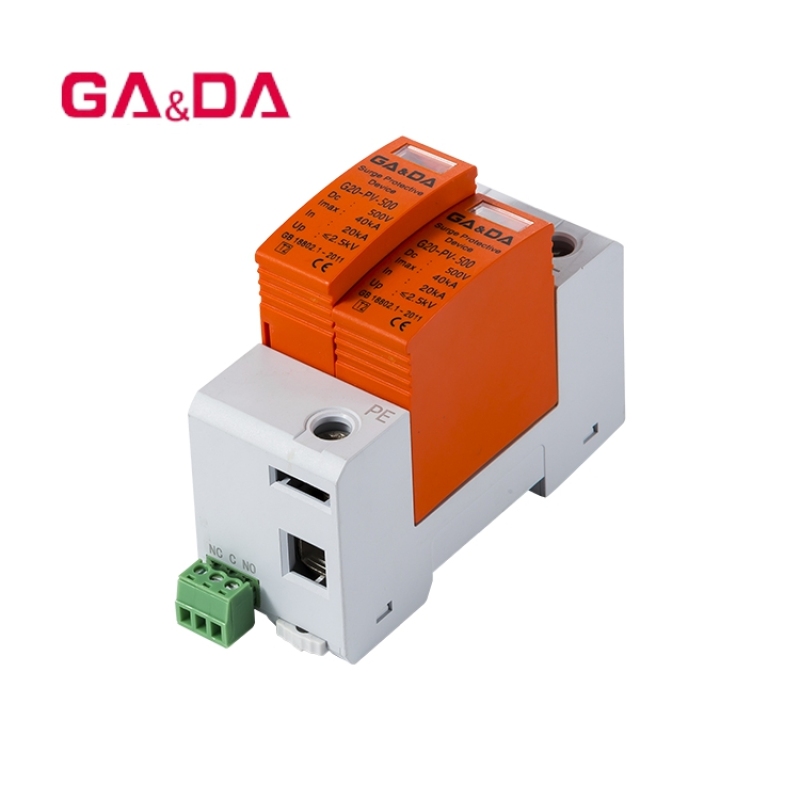

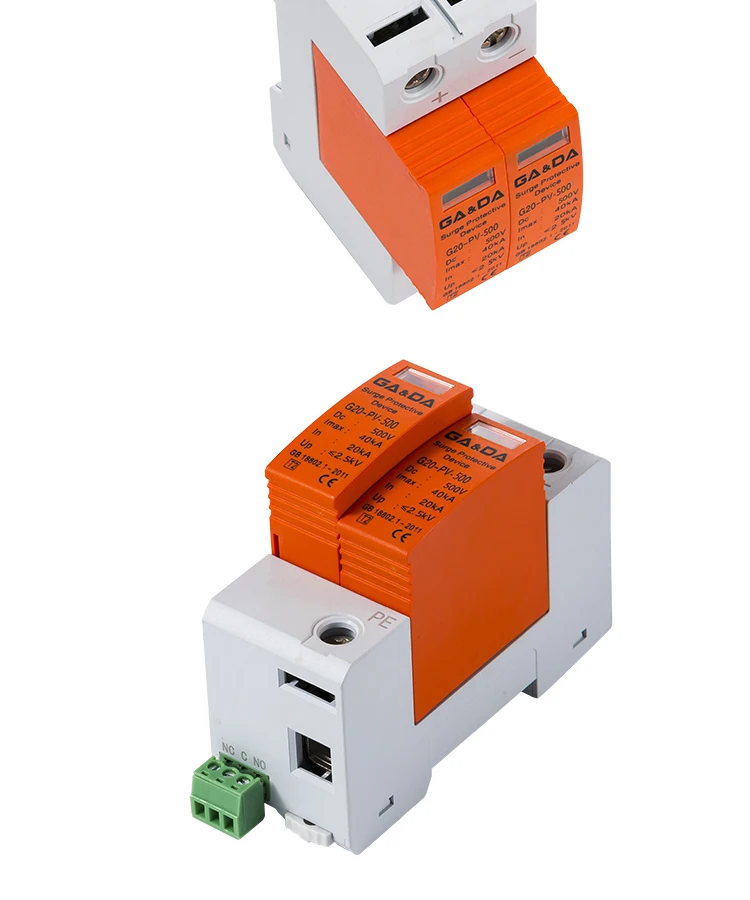

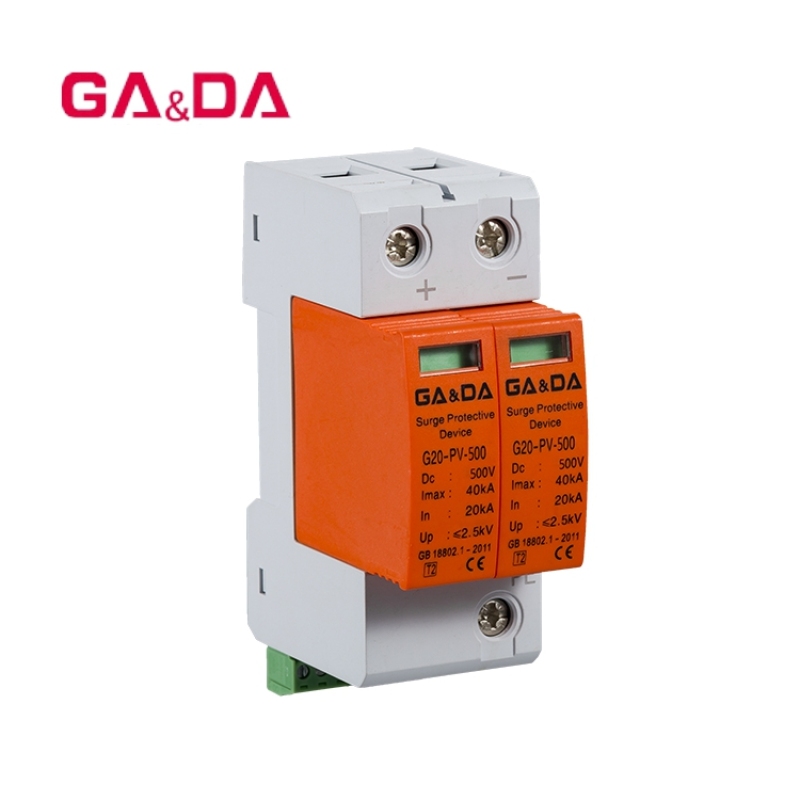

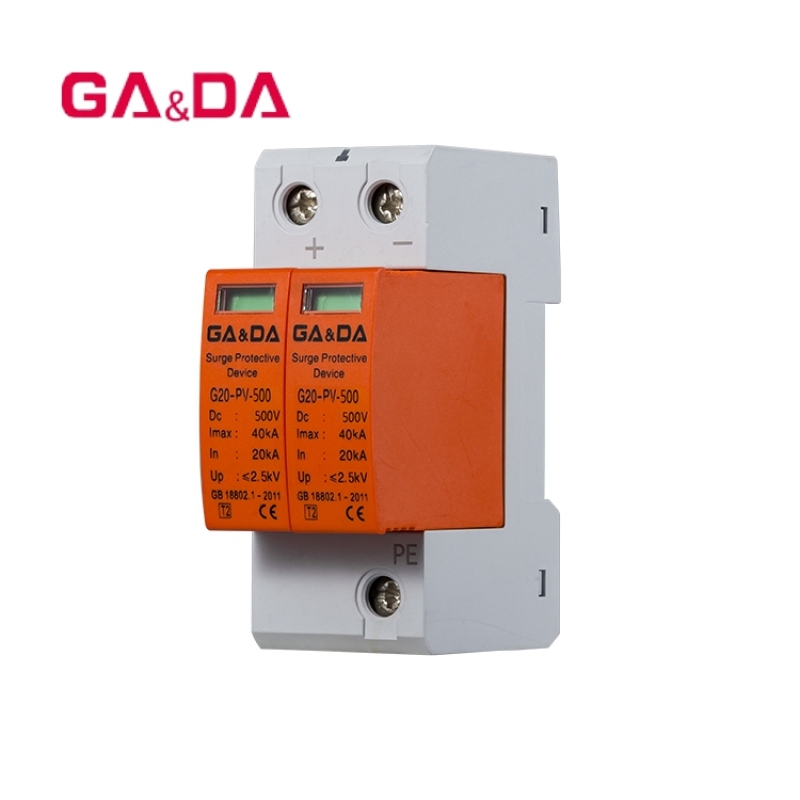

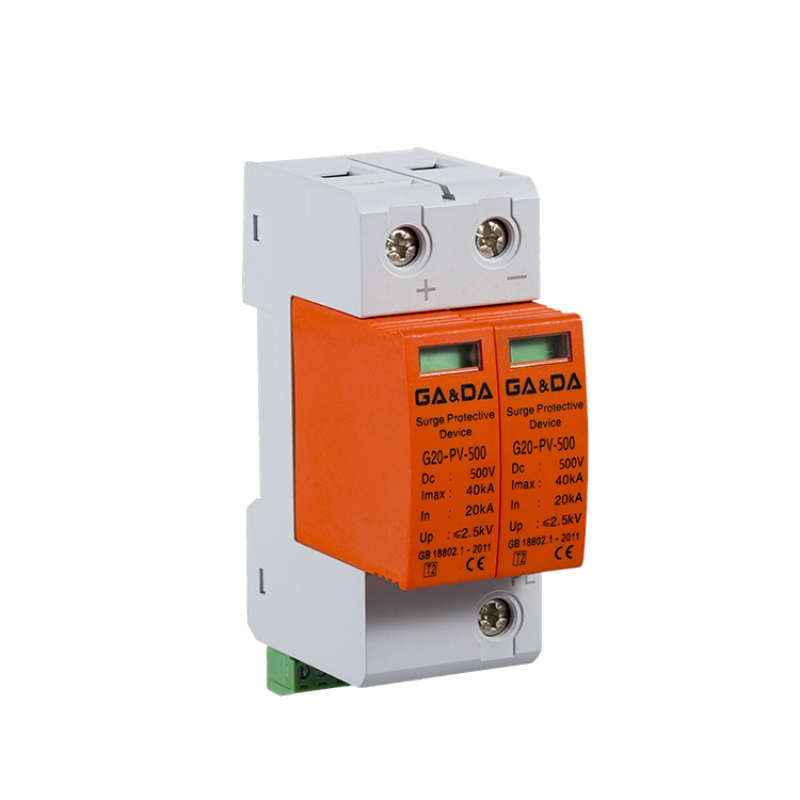

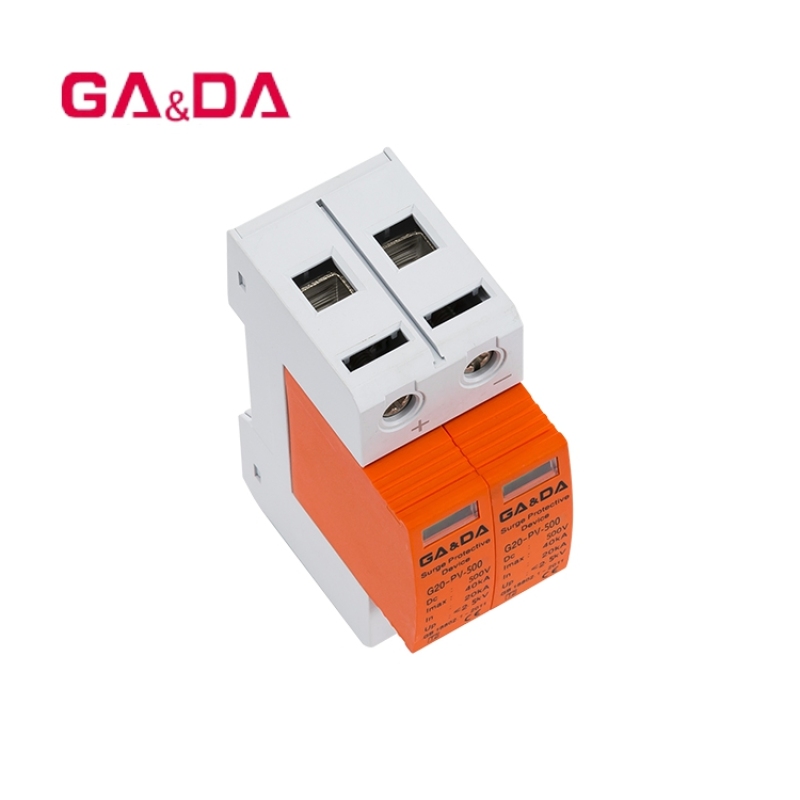

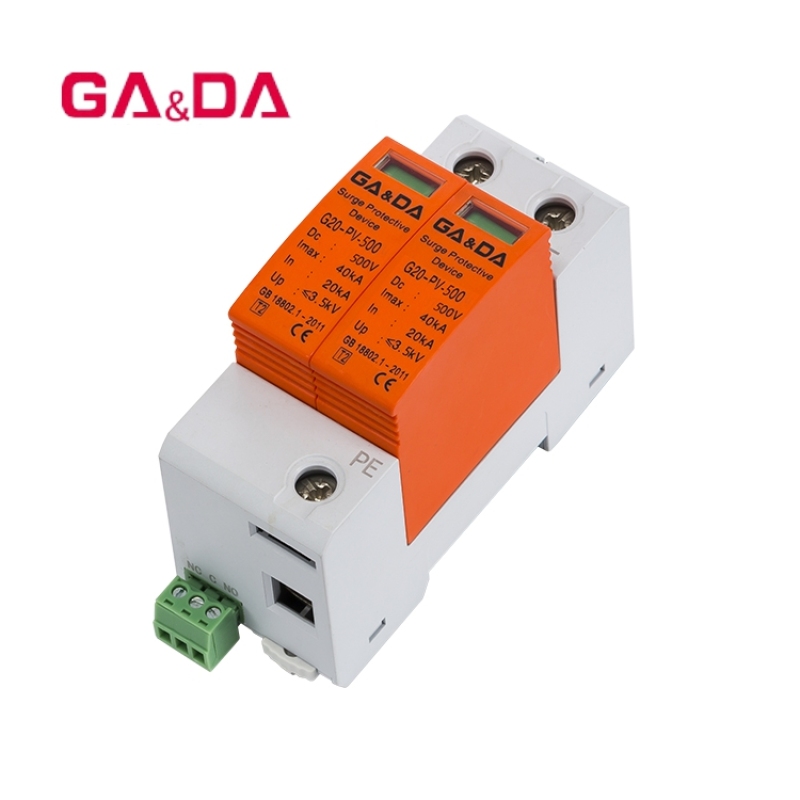

GADA 280V 40KA pv solar power surge protector device
G2040PV/800V/1000V/1500V series surge protector is suitable for the new energy solar power generation system with the working voltage of 800V/1000V/1500V. The installation position is in the total power supply system of direct current circuit, to protect the indirect lightning current, direct lightning current or other instantaneous overvoltage.
Product capability parameter | |||
Product model | G2040PV/800 | G2040PV/1000 | G2040PV/1500 |
Pole | 2p,3p | 2p,3p | 2p,3p |
Maximum continuous operating voltage Uc | 800V | 1000V | 1500V |
Voltage protection level Up | <3.6kV | <4.0kV | <4.5kV |
Limiting voltage Ures(5kA) | <2.8kV | <2.8kV | <3.0kV |
Nominal discharge current In(8/20μs) | 20kA | 20kA | 20kA |
Maximum discharge current Imax(8/20μs) | 40kA | 40kA | 40kA |
Sheathing material | Fire-retardant reinforced nylon | ||
Recommended area | 16mm2 | ||
Max backup protective fuse | 80 A gL | ||
Clearance and creepage distance | >25mm | ||
Protection grade | IP20 | ||
Normal working temperature | -40℃~80℃ | ||
| Model | G20-40PV-500V-2P |
| Color | White and orange |
| Certification | TUV,CE,CQCPV type power class 2 pole 500v dc surge solar lighting arrestors |
| purpose | G20 PV/500V/800V/1000V/1500V series surge protector is suitable for the new energy solar power generation system with the working voltage of 800V/1000V/1500V. |
| function | To shunt and pressure limitingthe indirect lightning current, direct lightning current or other instantaneous overvoltage. |

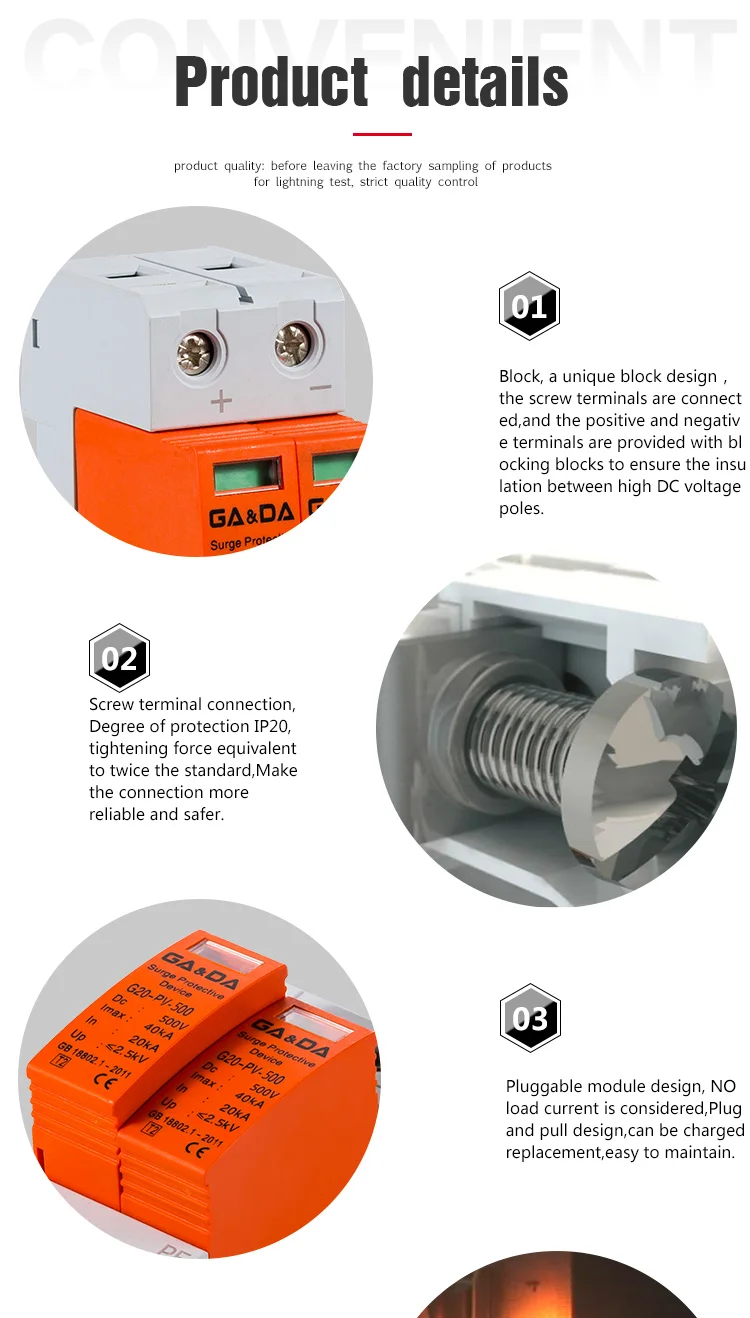

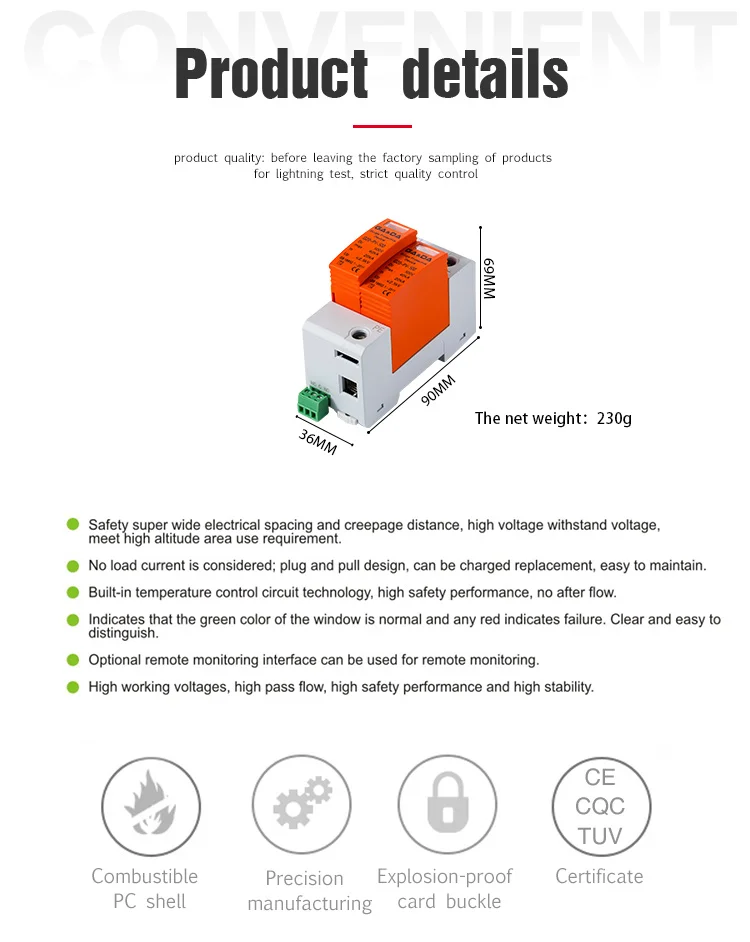

| Characteristic | 1:Surge protective device,plug. 2:The visual window color said protector working state;green(normal),red(fault). 3:Hot melt flow double protection.4:The configuration remote communication interface,can realize remote control. |
| selling point | 1:Safety super wide electrical spacing and creepage distance, high voltage withstand voltage, meet high altitude area use requirement 2:No load current is considered; plug and pull design, can be charged replacement, easy to maintain 3:Built-in temperature control circuit technology, high safety performance, no after flow.PV type power class 2 pole 500v dc surge protection device 4:Indicates that the green color of the window is normal and any red indicates failure. Clear and easy to distinguish. 5:Optional remote monitoring interface can be used for remote monitoring. 6:High working voltages, high pass flow, high safety performance and high stability. |
| advantage | 1:Over 10 years experience in production and processing |
Q1: Selection of surge protector
Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition.Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of GB50057 is 12.5 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.
Q2:Are you a lightning surge protectors factory or lightning surge protectors trading company?PV type power class 2 pole 500v dc surge solar lighting arrestors
A2: We are lightning surge protectors manufacturer.
Q3: Warranty and return:
A3:1. lightning surge protectors products and accessories have been tested by 3 times before ship out.
2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q4: How can I get some lightning surge protectors samples?
A4: We are honored to offer you lightning surge protectors samples, pis contact our staff and leave detailed contact information, we promise to keep your information confidential.
Q5: Is sample available and free?
AS: Sample is avaible, but the sample cost should be pay by you.The cost of sample will be refund after further order.
Q6:Do you accept customized order?
A6:Yes, we do.PV type power class 2 pole 500v dc surge protection device
Q7: What's the delievery time?
A7:It usually takes 7-15days after confirming payment, but specific time should be based on the order quantity.
| Business Type | Manufacturer, Trading Company | Country / Region | Zhejiang, China |
| Main Products | Power Surge Protector; Signal Surge Protector; PV DC Surge Protector; DC FUSE; AC/DC MCB, Surge Protector Device | Total Employees | 51 - 100 People |
| Total Annual Revenue | Confidential | Year Established | 2014 |
| Certifications | Product Certifications | ||
| Patents | A new type of backup protection switch for surge protector,A smart box type surge protector | Trademarks | |
| Main Markets | Domestic Market 50% Mid East 20% Eastern Europe 10% | ||
In the company, we have first-class laboratories and R&D platform: Lightening Simulation Laboratory of 8/20us150KA compatible with 10/350us50kA, Pressure Sensitive Resistance Tester, Combination Wave Generator of 1.2/50us, Voltage Generator of 1.2/50us, Clearance and Discharge Tube Detector, Remote Signal Detector, Thermal Stability Test System, Lightning Online Monitoring System, Intelligent Lightning Protection Detection System, the Frequency Current Test of SPD Backup Protector, Lightning Current Test System and so on. All of these advanced detection equipments ensure the security and stability of our products.
Integrity, brand, management and innovation has always been our business philosophy. To adapt to the personalized needs of customers for products, we constantly research and develop new technology, material, craft and products. We provide a full range of pre-sale, sale and after-sale service system to our customers with the best technology and the shortest R&D cycle.
